引发高度图插件异常 #1511

创造1c

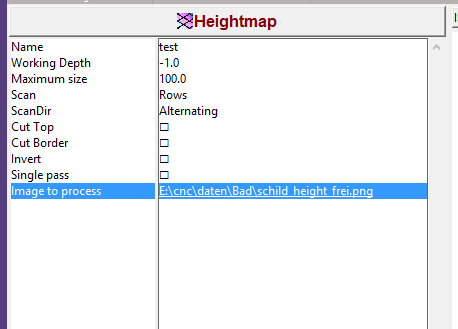

我正在尝试使用高度图图像，但似乎插件中止并显示如下消息。我也附上了设置的图像和屏幕截图。

Traceback (most recent call last): File "c:\python37\lib\site-packages\bCNC\Utils.py", line 465, in __call__ return self.func(*args) File "c:\python37\lib\site-packages\bCNC\lib\tkExtra.py", line 866, in handleKey active = unicode(self.get(ACTIVE)) NameError: name 'unicode' is not defined Traceback (most recent call last): File "c:\python37\lib\site-packages\bCNC\Utils.py", line 465, in __call__ return self.func(*args) File "c:\python37\lib\site-packages\bCNC\lib\tkExtra.py", line 866, in handleK ey active = unicode(self.get(ACTIVE)) NameError: name 'unicode' is not defined Traceback (most recent call last): File "c:\python37\lib\site-packages\bCNC\Utils.py", line 465, in __call__ return self.func(*args) File "c:\python37\lib\site-packages\bCNC\lib\tkExtra.py", line 866, in handleK ey active = unicode(self.get(ACTIVE)) NameError: name 'unicode' is not defined Traceback (most recent call last): File "c:\python37\lib\site-packages\bCNC\Utils.py", line 465, in __call__ return self.func(*args) File "c:\python37\lib\site-packages\bCNC\lib\tkExtra.py", line 866, in handleK ey active = unicode(self.get(ACTIVE)) NameError: name 'unicode' is not defined Traceback (most recent call last): File "c:\python37\lib\site-packages\bCNC\Utils.py", line 465, in __call__ return self.func(*args) File "c:\python37\lib\site-packages\bCNC\lib\tkExtra.py", line 866, in handleK ey active = unicode(self.get(ACTIVE)) NameError: name 'unicode' is not defined Traceback (most recent call last): File "c:\python37\lib\site-packages\bCNC\Utils.py", line 465, in __call__ return self.func(*args) File "c:\python37\lib\site-packages\bCNC\ToolsPage.py", line 1746, in execute self.tools.getActive().execute(self.app) File "c:\python37\lib\site-packages\bCNC\plugins\heightmap.py", line 326, in e xecute MAT.pad_w_zeros(TOOL) File "c:\python37\lib\site-packages\bCNC\lib\imageToGcode.py", line 823, in pa d_w_zeros temp[to:to+w, to:to+h] = self.matrix TypeError: slice indices must be integers or None or have an __index__ method

GitHubCaps

@creat1c您使用的是最新版本的 bCNC 吗？

我刚刚使用 Python 3.8.2 毫无问题地运行了这个

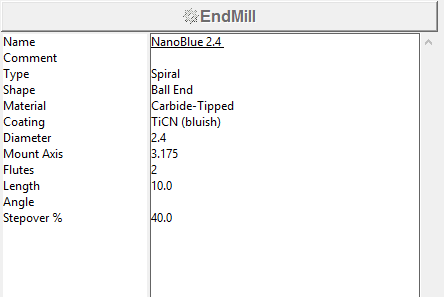

使用立铣刀设置输出：

(Block-name: Header)
(Block-expand: 0)
(Block-enable: 1)
M3 S12000
G4 P3
G0 Z10
(Block-name: test)
(Block-expand: 1)
(Block-enable: 1)
(Size: 100 x 45 x 1)
(Endmill shape: Ball End , Diameter: 2.400)

G0 Z3.0000
F1200.0000
F500.0000
G0 X27.6872 Y44.9127
F1200.0000
G1 Z-0.1289
 X28.0479 Z-0.4084
 X72.1489
 X72.5097 Z-0.1289
F500.0000
G0 Z3.0000
 X72.7803 Y44.0109
F1200.0000
G1 Z-0.1027
 X72.2391 Z-0.5120
 X66.7378 Z-0.5154
 X27.9577 Z-0.5120
 X27.4166 Z-0.1027
F500.0000
G0 Z3.0000
 X27.1460 Y43.1090
F1200.0000
G1 Z-0.1027
 X27.5068 Z-0.2896
 X72.6901
 X73.0508 Z-0.1138
F500.0000
G0 Z3.0000
 X73.7723 Y42.2071
F1200.0000
G1 Z-0.1138
 X73.3214 Z-0.2825
 X26.8755
 X26.4246 Z-0.1138
F500.0000
G0 Z3.0000
 X25.3423 Y41.3053
F1200.0000
G1 Z-0.1027
 X25.8834 Z-0.2825
 X74.3134 Z-0.2789
 X74.8545 Z-0.1138
F500.0000
G0 Z3.0000
 X85.9474 Y40.4034
F1200.0000
G1 Z-0.1289
 X85.6769 Z-0.2825
 X14.5200
 X14.2494 Z-0.1289
F500.0000
G0 Z3.0000
 Y39.5015
F1200.0000
G1 Z-0.1289
 X14.5200 Z-0.2507
 X85.6769
 X85.9474 Z-0.1289
F500.0000
G0 Z3.0000
 X99.2950 Y38.5997
F1200.0000
G1 Z-0.1027
 X86.4886 Z-0.1795
 X85.9474 Z-0.3348
 X85.4063 Z-0.2198
 X14.7905
 X14.2494 Z-0.3348
 X13.7083 Z-0.1795
 X0.9019 Z-0.1027
F500.0000
G0 Z3.0000
 X0.6313 Y37.6978
F1200.0000
G1 Z-0.1289
 X1.1724 Z-0.6241
 X12.9868 Z-0.6275
 X14.7905 Z-0.2198
 X85.4063
 X87.1199 Z-0.6241
 X95.8679 Z-0.6284
 X98.9342 Z-0.6250
 X99.5655 Z-0.1214
F500.0000
G0 Z3.0000
 X100.1067 Y36.7960
F1200.0000
G1 Z-0.1795
 X99.2048 Z-0.5724
 X86.9395 Z-0.5686
 X85.4063 Z-0.2198
 X14.7905
 X13.2574 Z-0.5680
 X1.0822 Z-0.5724
 X0.5411 Z-0.1289
F500.0000
G0 Z3.0000
 Y35.8941
F1200.0000
G1 Z-0.1289
 X1.0822 Z-0.5724
 X13.1672 Z-0.5715
 X14.7905 Z-0.2198
 X85.4063
 X87.0297 Z-0.5715
 X99.0244
 X100.1067 Z-0.1795
F500.0000
G0 Z3.0000
 X99.5655 Y34.9922
F1200.0000
G1 Z-0.1214
 X99.0244 Z-0.5814
 X98.7539 Z-0.6284
 X87.1199 Z-0.6241
 X85.4063 Z-0.2198
 X14.7905
 X13.0770 Z-0.6241
 X1.6234 Z-0.6275
 X1.1724 Z-0.6241
 X0.6313 Z-0.1289
F500.0000
G0 Z3.0000
 X0.8117 Y34.0904
F1200.0000
G1 Z-0.1027
 X1.4430 Z-0.7140
 X1.8037 Z-0.7240
 X12.9868 Z-0.7205
 X14.7905 Z-0.2198
 X85.4063
 X87.3002 Z-0.7240
 X98.6637 Z-0.7205
 X99.2950 Z-0.1327
F500.0000
G0 Z3.0000
 X99.3852 Y33.1885
F1200.0000
G1 Z-0.1027
 X98.7539 Z-0.7067
 X98.4833 Z-0.7076
 X87.2100
 X85.4063 Z-0.2198
 X14.7905
 X12.9868 Z-0.7067
 X1.4430 Z-0.7033
 X0.8117 Z-0.1027
F500.0000
G0 Z3.0000
 X0.6313 Y32.2867
F1200.0000
G1 Z-0.1289
 X1.1724 Z-0.6198
 X13.0770 Z-0.6232
 X14.7905 Z-0.2198
 X85.4063
 X87.0297 Z-0.6191
 X98.6637 Z-0.6232
 X99.0244 Z-0.5814
 X99.5655 Z-0.1214
F500.0000
G0 Z3.0000
 X100.1067 Y31.3848
F1200.0000
G1 Z-0.1795
 X99.2950 Z-0.5680
 X86.9395
 X85.4063 Z-0.2198
 X14.7905
 X13.2574 Z-0.5680
 X1.0822
 X0.5411 Z-0.1289
F500.0000
G0 Z3.0000
 Y30.4829
F1200.0000
G1 Z-0.1289
 X1.0822 Z-0.5724
 X3.5173 Z-0.5758
 X13.1672 Z-0.5733
 X14.7905 Z-0.2198
 X85.4063
 X87.0297 Z-0.5724
 X99.2950
 X99.6557 Z-0.2845
 X100.1067 Z-0.1795
F500.0000
G0 Z3.0000
 X99.5655 Y29.5811
F1200.0000
G1 Z-0.1214
 X98.9342 Z-0.6241
 X97.9422 Z-0.6284
 X87.3002 Z-0.6275
 X85.4063 Z-0.2198
 X14.7905
 X12.9868 Z-0.6284
 X1.3528
 X0.6313 Z-0.1214
F500.0000
G0 Z3.0000
 X0.9019 Y28.6792
F1200.0000
G1 Z-0.1327
 X1.5332 Z-0.7240
 X5.1406 Z-0.7248
 X11.0027 Z-0.7205
 X11.6340 Z-0.5095
 X13.5279 Z-0.4358
 X14.7003 Z-0.2198
 X85.4965
 X86.6689 Z-0.4358
 X88.5628 Z-0.5095
 X89.1941 Z-0.7240
 X98.6637
 X99.2950 Z-0.1327
F500.0000
G0 Z3.0000
 X99.3852 Y27.7773
F1200.0000
G1 Z-0.1027
 X98.7539 Z-0.7067
 X98.3931 Z-0.7076
 X90.5469 Z-0.7067
 X89.7353 Z-0.4846
 X86.8493 Z-0.2198
 X13.3476
 X10.4616 Z-0.4846
 X9.5597 Z-0.7033
 X1.4430 Z-0.7067
 X0.8117 Z-0.1027
F500.0000
G0 Z3.0000
 X0.6313 Y26.8755
F1200.0000
G1 Z-0.1289
 X1.3528 Z-0.6232
 X8.2971 Z-0.6198
 X11.8144 Z-0.2198
 X88.3825
 X91.8997 Z-0.6232
 X97.5815
 X98.9342 Z-0.6198
 X99.5655 Z-0.1214
F500.0000
G0 Z3.0000
 X100.1067 Y25.9736
F1200.0000
G1 Z-0.2411
 X99.3852 Z-0.5680
 X93.3427
 X89.9156 Z-0.2198
 X10.1910
 X6.8541 Z-0.5680
 X1.0822
 X0.5411 Z-0.1289
F500.0000
G0 Z3.0000
 Y25.0718
F1200.0000
G1 Z-0.1289
 X1.0822 Z-0.5724
 X4.2388 Z-0.5758
 X7.3051 Z-0.4358
 X8.6579 Z-0.2198
 X91.5390
 X94.8759 Z-0.5724
 X99.2950
 X99.6557 Z-0.2845
 X100.1067 Z-0.1795
F500.0000
G0 Z3.0000
 X99.5655 Y24.1699
F1200.0000
G1 Z-0.1214
 X98.8441 Z-0.6284
 X96.5894
 X93.0721 Z-0.2198
 X7.1247
 X3.6074 Z-0.6241
 X1.6234 Z-0.6284
 X1.1724 Z-0.5814
 X0.6313 Z-0.1214
F500.0000
G0 Z3.0000
 X0.9019 Y23.2680
F1200.0000
G1 Z-0.1327
 X1.6234 Z-0.7248
 X2.4350
 X3.0663 Z-0.4671
 X5.5915 Z-0.2198
 X94.6053
 X97.1305 Z-0.4671
 X97.7618 Z-0.7205
 X98.6637 Z-0.7240
 X99.2950 Z-0.1327
F500.0000
G0 Z3.0000
 X99.3852 Y22.3662
F1200.0000
G1 Z-0.1027
 X98.6637 Z-0.7067
 X97.6716 Z-0.7033
 X97.0403 Z-0.4567
 X95.7777 Z-0.4397
 X94.5151 Z-0.2198
 X5.6817
 X4.4191 Z-0.4397
 X3.1565 Z-0.4567
 X2.5252 Z-0.7033
 X1.5332 Z-0.7067
 X0.8117 Z-0.1027
F500.0000
G0 Z3.0000
 X0.6313 Y21.4643
F1200.0000
G1 Z-0.1289
 X1.1724 Z-0.6198
 X3.7878
 X7.3051 Z-0.2198
 X92.8918
 X96.4090 Z-0.6198
 X99.0244
 X99.5655 Z-0.1289
F500.0000
G0 Z3.0000
 X100.1067 Y20.5624
F1200.0000
G1 Z-0.2411
 X99.3852 Z-0.5671
 X94.6053 Z-0.5610
 X91.3586 Z-0.2198
 X8.8382
 X5.5014 Z-0.5637
 X1.1724 Z-0.5671
 X0.5411 Z-0.1289
F500.0000
G0 Z3.0000
 Y19.6606
F1200.0000
G1 Z-0.1289
 X1.2626 Z-0.5767
 X7.0345 Z-0.5733
 X10.3714 Z-0.2198
 X89.8254
 X93.1623 Z-0.5733
 X99.1146 Z-0.5767
 X100.1067 Z-0.1795
F500.0000
G0 Z3.0000
 X99.5655 Y18.7587
F1200.0000
G1 Z-0.1027
 X98.9342 Z-0.6327
 X91.8095
 X88.2021 Z-0.2198
 X11.9948
 X8.3873 Z-0.6318
 X1.2626
 X0.6313 Z-0.1214
F500.0000
G0 Z3.0000
 X0.9019 Y17.8569
F1200.0000
G1 Z-0.1327
 X1.5332 Z-0.7378
 X4.7799 Z-0.7412
 X9.6499 Z-0.7378
 X10.6420 Z-0.4846
 X13.5279 Z-0.2198
 X86.6689
 X89.5549 Z-0.4846
 X90.5469 Z-0.7378
 X98.6637 Z-0.7412
 X99.2950 Z-0.1327
F500.0000
G0 Z3.0000
 X99.3852 Y16.9550
F1200.0000
G1 Z-0.1027
 X98.7539 Z-0.6974
 X96.7698 Z-0.6990
 X89.1039 Z-0.6974
 X85.4063 Z-0.2198
 X14.7905
 X11.0929 Z-0.6974
 X1.4430
 X0.8117 Z-0.1027
F500.0000
G0 Z3.0000
 X0.6313 Y16.0531
F1200.0000
G1 Z-0.1289
 X1.1724 Z-0.6155
 X3.5173 Z-0.6198
 X13.0770 Z-0.6189
 X14.7905 Z-0.2198
 X85.4063
 X87.0297 Z-0.6155
 X98.5735 Z-0.6189
 X99.0244 Z-0.6155
 X99.5655 Z-0.1289
F500.0000
G0 Z3.0000
 X100.1067 Y15.1513
F1200.0000
G1 Z-0.2411
 X99.3852 Z-0.5637
 X98.5735 Z-0.5671
 X86.9395
 X85.4063 Z-0.2198
 X14.7905
 X13.2574 Z-0.5637
 X1.1724 Z-0.5671
 X0.5411 Z-0.1289
F500.0000
G0 Z3.0000
 Y14.2494
F1200.0000
G1 Z-0.1289
 X1.0822 Z-0.5733
 X7.3051 Z-0.5767
 X13.2574 Z-0.5686
 X14.7905 Z-0.2198
 X85.4063
 X87.0297 Z-0.5758
 X99.2048 Z-0.5733
 X99.6557 Z-0.2285
 X100.1067 Z-0.1289
F500.0000
G0 Z3.0000
 X99.5655 Y13.3476
F1200.0000
G1 Z-0.1027
 X98.9342 Z-0.6284
 X87.1199
 X85.4063 Z-0.2198
 X14.7905
 X13.0770 Z-0.6284
 X1.4430
 X1.1724 Z-0.5814
 X0.6313 Z-0.1214
F500.0000
G0 Z3.0000
 X0.9019 Y12.4457
F1200.0000
G1 Z-0.1327
 X1.6234 Z-0.7283
 X12.9868 Z-0.7248
 X14.7905 Z-0.2198
 X85.4063
 X87.2100 Z-0.7248
 X98.6637
 X99.2950 Z-0.1327
F500.0000
G0 Z3.0000
 X99.3852 Y11.5438
F1200.0000
G1 Z-0.1027
 X98.7539 Z-0.7033
 X98.4833 Z-0.7076
 X87.2100 Z-0.7067
 X85.4063 Z-0.2198
 X14.7905
 X12.9868 Z-0.7076
 X1.9841 Z-0.7067
 X1.4430 Z-0.7033
 X0.8117 Z-0.1214
F500.0000
G0 Z3.0000
 X0.6313 Y10.6420
F1200.0000
G1 Z-0.1289
 X1.1724 Z-0.6189
 X1.4430 Z-0.6198
 X13.1672 Z-0.6191
 X14.7905 Z-0.2198
 X85.4063
 X87.0297 Z-0.6191
 X99.0244 Z-0.6198
 X99.5655 Z-0.1289
F500.0000
G0 Z3.0000
 X100.1067 Y9.7401
F1200.0000
G1 Z-0.2411
 X99.3852 Z-0.5671
 X87.0297
 X85.4063 Z-0.2198
 X14.7905
 X13.2574 Z-0.5671
 X1.8939 Z-0.5680
 X1.0822 Z-0.5637
 X0.5411 Z-0.1289
F500.0000
G0 Z3.0000
 Y8.8382
F1200.0000
G1 Z-0.1289
 X0.9920 Z-0.5248
 X1.3528 Z-0.5767
 X13.0770 Z-0.5758
 X14.7905 Z-0.2198
 X85.4063
 X87.1199 Z-0.5758
 X99.2048 Z-0.5767
 X99.6557 Z-0.2285
 X100.1067 Z-0.1289
F500.0000
G0 Z3.0000
 X99.5655 Y7.9364
F1200.0000
G1 Z-0.1027
 X98.9342 Z-0.6327
 X87.1199 Z-0.6318
 X85.4063 Z-0.2198
 X14.7905
 X13.0770 Z-0.6318
 X1.4430
 X1.1724 Z-0.5814
 X0.6313 Z-0.1214
F500.0000
G0 Z3.0000
 X1.0822 Y7.0345
F1200.0000
G1 Z-0.1027
 X13.7083 Z-0.1289
 X14.3396 Z-0.3078
 X85.8572
 X86.4886 Z-0.1289
 X99.1146 Z-0.1027
F500.0000
G0 Z3.0000
 X85.9474 Y6.1327
F1200.0000
G1 Z-0.1289
 X85.6769 Z-0.2507
 X14.5200
 X14.2494 Z-0.1289
F500.0000
G0 Z3.0000
 Y5.2308
F1200.0000
G1 Z-0.1289
 X14.4298 Z-0.2411
 X23.7190 Z-0.2753
 X76.6583
 X85.7671 Z-0.2411
 X85.9474 Z-0.1289
F500.0000
G0 Z3.0000
 X74.7643 Y4.3289
F1200.0000
G1 Z-0.1027
 X74.2232 Z-0.2825
 X26.0638 Z-0.2789
 X25.5227 Z-0.1138
F500.0000
G0 Z3.0000
 X26.5147 Y3.4271
F1200.0000
G1 Z-0.1138
 X26.9657 Z-0.2825
 X73.2312 Z-0.2789
 X73.6821 Z-0.1138
F500.0000
G0 Z3.0000
 X72.9606 Y2.5252
F1200.0000
G1 Z-0.1214
 X72.5999 Z-0.3114
 X27.5970
 X27.2362 Z-0.1214
F500.0000
G0 Z3.0000
 X27.5068 Y1.6234
F1200.0000
G1 Z-0.1327
 X28.1381 Z-0.5172
 X72.0588
 X72.6901 Z-0.1327
F500.0000
G0 Z3.0000
 X72.5097 Y0.7215
F1200.0000
G1 Z-0.1289
 X71.9686 Z-0.6115
 X71.3373 Z-0.6128
 X28.2283 Z-0.6120
 X27.6872 Z-0.1289
F500.0000
G0 Z3.0000
 X27.8675 Y0.0000
F1200.0000
G1 Z-0.1289
 X28.3185 Z-0.5248
 X29.4909 Z-0.5422
 X71.6980 Z-0.5388
 X72.2391 Z-0.1289
G0 Z3.0000

(Block-name: Footer)
(Block-expand: 0)
(Block-enable: 1)
G0 Z10
M5

GitHubCaps

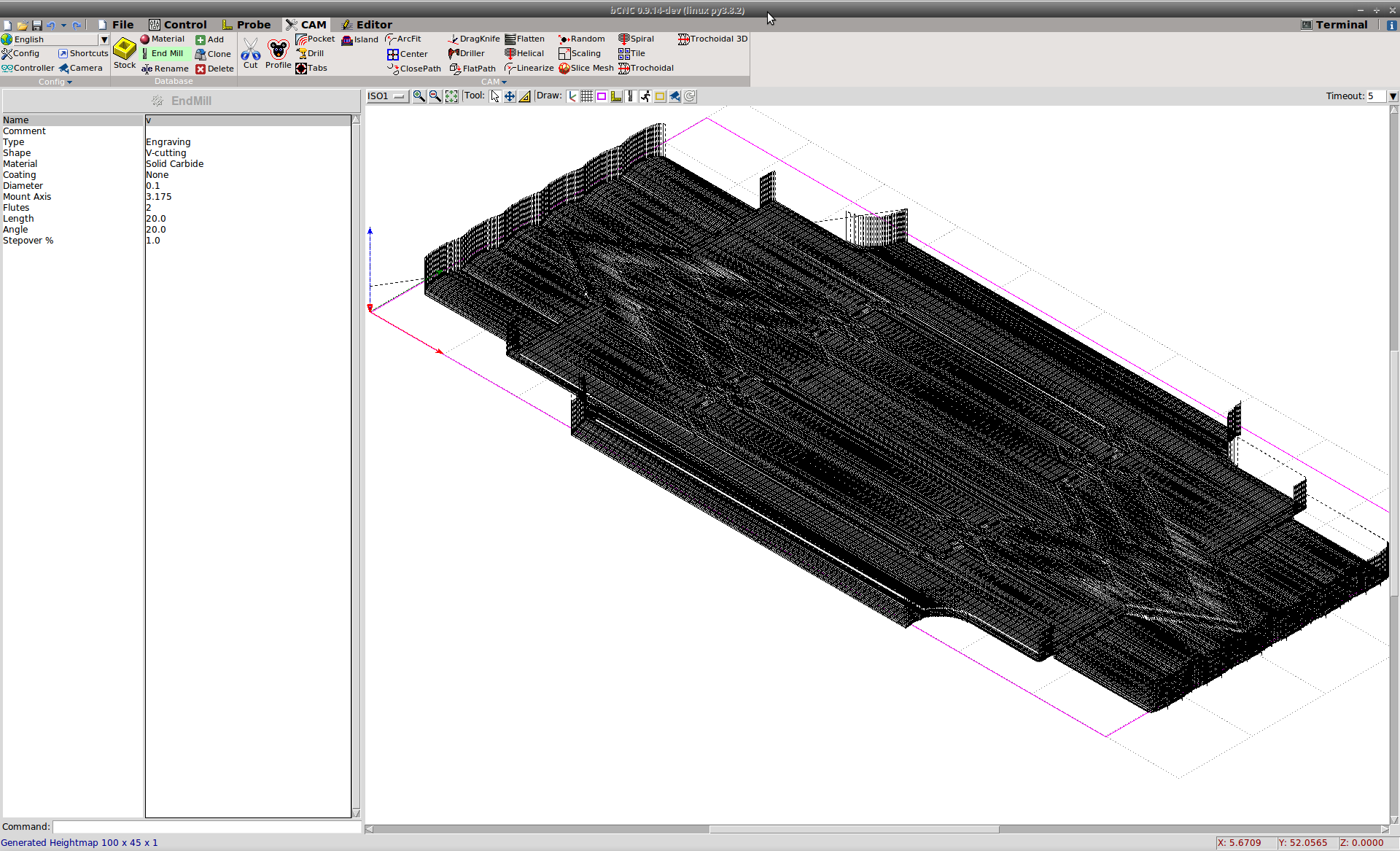

用锥形钻头测试：

创造1c

我最初没有使用 3.8.2，但现在验证了行为相似（见下文）。此外，bCNC 的版本是 0.9.14，这是由py -m pip install bCNC

从错误来看，似乎立铣刀设置可能有问题？我尝试使用屏幕截图中的确切设置，但无济于事。

我假设它使用从立铣刀菜单中选择的任何工具是否正确？
我的工作流程是：
点击“End mill”-> Setup endmill values
打开菜单 CAM，子菜单 Generators，Heightmap
选择文件
点击“heightmap”执行按钮
工作 1-2 秒，然后显示错误。

此外，我在我的 Windows 机器以及连接到我的工厂的 rPI 上尝试了这个，结果相当。

Traceback (most recent call last): File "E:\Python\3.8.2\lib\site-packages\bCNC\Utils.py", line 526, in __call__ return self.func(*args) File "E:\Python\3.8.2\lib\site-packages\bCNC\ToolsPage.py", line 1747, in exec ute self.tools.getActive().execute(self.app) File "E:\Python\3.8.2\lib\site-packages\bCNC\plugins\heightmap.py", line 326, in execute MAT.pad_w_zeros(TOOL) File "E:\Python\3.8.2\lib\site-packages\bCNC\lib\imageToGcode.py", line 823, i n pad_w_zeros temp[to:to+w, to:to+h] = self.matrix TypeError: slice indices must be integers or None or have an __index__ method

创造1c

我能够通过将 imagetogcode.py 的第 823 行更改为读取来使插件工作

self.t_offset = int((ts-1)/2)

GitHubCaps

老实说，这非常令人费解。我之前没有看到高度图插件或其依赖项 imageToGcode 有任何问题，就像我说的那样，它无需修改即可为我工作。我确实知道两者都需要进行一些改进，但之前没有什么能阻止它运行。在我看来，用户似乎有不同的结果，但为什么呢？我在 py2 和 py3 中测试过，它很简单。

创造1c

问题似乎是这条线之前（没有转换为 int）被评估为浮点数。这似乎导致了索引的下游问题。我所做的只是将演员表添加到一个 int 中，现在它可以工作了。

至于为什么会这样，我不确定。在我的调试器中，ts 的值为 3，所以 (3-1)/2=2 应该是一个整数？不是一个巨大的 python 专业人士，所以我也在这里不知所措。

如果您对我如何进一步测试有任何想法，我很乐意接受它，以确保这不会发生在其他任何人身上。

GitHubCaps

@creat1c我很抱歉！刚刚意识到我使用了自己的 image2gode 而不是 imageToGcode。

我有一个不转换为整数的固定版本，而是使用self.t_offset = (ts-1)//2
我将把它放在这里供您尝试。希望很快，我会在这里提交/推送它。

这个修复了 py2 和 py3 的所有弃用问题！
imageToGcode.py.zip

创造1c

啊! 感谢您检查。
我还有一个问题 – 步长通常取决于铣削钻头吗？它使用非常精细的网格（0.1 毫米）而不是我选择的铣削钻头（1 毫米），我想知道我的修复是否有副作用？

creat1c完成后关闭 2021 年 1 月 11 日

引发高度图插件异常#1511

评论
