你能上传一个示例文件吗？

这个切割文件是 1 部分。实际上需要切割大约 10-100 个零件。带传送带。一口一口。

这台机器使用切向轴。就像你的机器
https://www.youtube.com/watch?v=uMFyTCK8Ggw

您确定您的示例代码是正确的 Gerber 代码吗？我想念每行后面的“*”。
此外，gerber 未描述所有“H”和“M”命令。

H1*M70*D2*M15*M20*LADIES-BLOUSE/L=23.00cm/W=90.00c*N1*M26*M15*D2*M15*X0Y0*M14*X0Y196*X905Y196*X905Y0*X0Y0*M15*N2*M15*D2*M15*X0Y3346*M14*X905Y3346*X905Y3543*X0Y3543*X0Y3346*M15*QX905Y0*M0* N,0001 L0*

抱歉 .github 网站在我粘贴代码时正在转换

你可以看看这个 github“ https://github.com/rsmith-nl/nctools ”

好的，很高兴知道，但 M 代码仍然未知：
已知代码示例：https
: //www.artwork.com/gerber/gbr_rip/mcode_support.htm 我也找不到“H1”和“N1”。 ..

你可以看看这个 github“ https://github.com/rsmith-nl/nctools ”

它适用于您的示例代码吗？

该程序是用于切割机的 dxf 到 gerber 切割机切割文件转换器。你可以看看格柏代码是如何工作的吗？

https://www.youtube.com/watch?v=8nt_5XFGXHU

可以在 1.5.0.4 中工作

谢谢

你能改进 notch 吗？你能为 I 缺口与 V 缺口的变化添加缺口处理器吗？当程序看起来我在图案上刻痕时，它会随着 V 形刻痕而改变。应为 V 形槽口设置深长度，切割 V 形槽口时不要将笔朝下。有可能的 ？
维埃莱·格吕斯

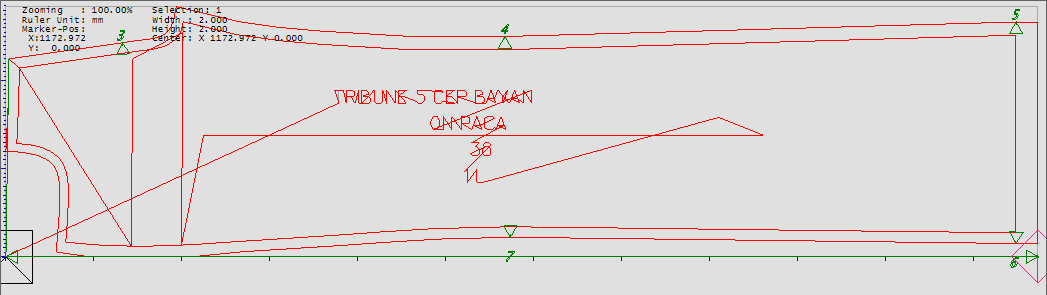

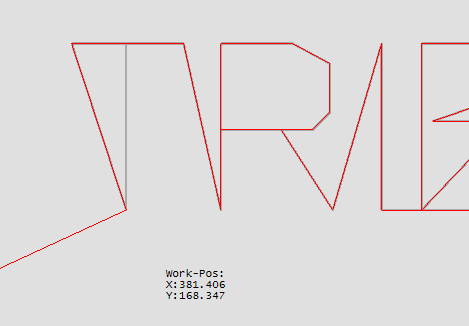

H1*M70*M20*TRIBUNE 5 CEP BAYAN*ZX4618*N1*D2*M15*X1490Y745*D1*X1490Y687*D2*X1471Y745*D1*X1510Y745*D2*X1523Y687*D1*X1523Y745*X1548Y745*X1561Y738*X1561Y721*X1555Y715*X1523Y715*D2*X1544Y715*D1*X1562Y687*D2*X1579Y745*D1*X1579Y687*D2*X1593Y687*D1*X1593Y745*X1614Y745*X1623Y736*X1623Y727*X1597Y718*X1622Y718*X1632Y707*X1632Y696*X1623Y687*X1593Y687*D2*X1648Y745*D1*X1648Y696*X1657Y687*X1678Y687*X1687Y696*X1687Y745*D2*X1703Y687*D1*X1703Y745*X1742Y687*X1742Y745*D2*X1792Y687*D1*X1756Y687*X1756Y745*X1792Y745*D2*X1756Y718*D1*X1778Y718*D2*X1837Y694*D1*X1845Y687*X1863Y687*X1873Y697*X1873Y715*X1862Y726*X1844Y726*X1844Y745*X1873Y745*D2*X1957Y736*D1*X1948Y745*X1925Y745*X1916Y736*X1916Y696*X1925Y687*X1948Y687*X1957Y696*D2*X2007Y687*D1*X1971Y687*X1971Y745*X2007Y745*D2*X1971Y718*D1*X1993Y718*D2*X2021Y687*D1*X2021Y745*X2046Y745*X2059Y738*X2059Y721*X2052Y715*X2021Y715*D2*X2102Y687*D1*X2102Y745*X2123Y745*X2132Y736*X2132Y727*X2107Y718*X2132Y718*X2142Y707*X2142Y696*X2132Y687*X2102Y687*D2*X2149Y687*D1*X2171Y745*X2193Y687*D2*X2157Y706*D1*X2185Y706*D2*X2202Y745*D1*X2224Y718*X2224Y687*D2*X2246Y745*D1*X2224Y718*D2*X2254Y687*D1*X2276Y745*X2299Y687*D2*X2263Y706*D1*X2290Y706*D2*X2315Y687*D1*X2315Y745*X2354Y687*X2354Y745*D2*X1912Y569*D1*X1902Y588*X1902Y608*X1912Y627*X1931Y627*X1941Y608*X1941Y588*X1931Y569*X1912Y569*D2*X1957Y569*D1*X1957Y627*X1996Y569*X1996Y627*D2*X2038Y569*D1*X2038Y627*X2063Y627*X2076Y620*X2076Y603*X2070Y597*X2038Y597*D2*X2085Y569*D1*X2107Y627*X2130Y569*D2*X2094Y588*D1*X2121Y588*D2*X2185Y618*D1*X2176Y627*X2153Y627*X2143Y618*X2143Y578*X2153Y569*X2176Y569*X2185Y578*D2*X2193Y569*D1*X2215Y627*X2237Y569*D2*X2201Y588*D1*X2229Y588*D2*X2082Y509*D1*X2118Y509*X2099Y491*X2109Y491*X2118Y482*X2118Y461*X2107Y451*X2088Y451*X2079Y460*D2*X2143Y491*D1*X2134Y481*X2134Y460*X2143Y451*X2161Y451*X2170Y460*X2170Y481*X2161Y491*X2143Y491*X2134Y500*X2143Y509*X2161Y509*X2170Y500*X2161Y491*D2*X2052Y380*D1*X2065Y391*X2065Y333*D2*X2108Y391*D1*X2108Y333*X2138Y333*D2*X3190Y623*D1*X3387Y544*X2418Y544*X1449Y544*X885Y544*D2*X786Y53*D1*X792Y1004*D2*X567Y885*D1*X562Y46*D2*X60Y844*D1*X573Y917*X662Y929*X669Y931*X693Y937*X701Y939*X711Y943*X723Y949*X730Y952*X737Y957*X749Y965*X754Y969*X762Y977*X770Y987*X775Y994*X780Y1002*X785Y1014*X789Y1025*X794Y1051*X1022Y996*X1043Y992*X1229Y966*X1394Y951*X1790Y927*X1871Y925*X2233Y926*X3202Y953*X4170Y981*X4520Y991*X4518Y107*X3550Y118*X2581Y130*X2256Y134*X1972Y127*X1908Y125*X1701Y112*X1510Y98*X1059Y69*X824Y53*X791Y52*X634Y47*X561Y47*X437Y51*X374Y55*X268Y65*X277Y180*X280Y283*X280Y300*X279Y320*X276Y348*X273Y362*X271Y372*X268Y386*X264Y396*X261Y403*X257Y413*X252Y422*X246Y431*X238Y440*X230Y448*X219Y457*X210Y464*X195Y473*X178Y481*X172Y484*X156Y490*X150Y492*X136Y495*X124Y498*X107Y500*X73Y504*X49Y506*X58Y708*X60Y844*D2*X13Y885*M14*X521Y957*X522Y946*M15*X521Y957*M14*X567Y964*X653Y975*X679Y982*X687Y985*X701Y991*X710Y996*X716Y1000*X721Y1005*X728Y1011*X732Y1018*X738Y1027*X741Y1034*X747Y1047*X749Y1055*X752Y1063*X755Y1079*X762Y1119*X1033Y1054*X1057Y1049*X1214Y1027*X1398Y1010*X1799Y986*X1873Y984*X2233Y985*X2233Y973*M15*X2233Y985*M14*X3201Y1012*X4169Y1040*X4520Y1050*X4520Y1038*M15*X4520Y1050*M14*X4618Y1047*X4617Y78*X4617Y60*X4518Y59*X4519Y71*M15*X4518Y59*M14*X3550Y71*X2581Y83*X2257Y86*X2257Y98*M15*X2257Y86*M14*X1966Y80*X1910Y77*X1712Y65*X1513Y51*X1062Y22*X839Y7*X793Y4*X635Y0*X560Y0*X446Y4*X371Y8*X225Y21*X238Y181*X241Y269*X241Y286*X239Y317*X238Y334*X236Y346*X234Y358*X232Y367*X228Y380*X223Y392*X219Y399*X214Y406*X206Y415*X199Y422*X193Y427*X186Y432*X175Y438*X160Y445*X151Y449*X138Y453*X127Y457*X107Y461*X90Y464*X55Y468*X0Y472*X11Y696*X11Y709*X13Y885*M15*M0*

我不明白你的文字，你的I-和V-notch是什么意思？
我想你可能会谈论切线刀在锐化曲线上抬起？

https://hizliresim.com/uzXKQs

你可以看到 2 之间的 2 我的意思是图案边界上的小垂直线。

https://hizliresim.com/dn7uTW

我画了粉红色的圆圈。

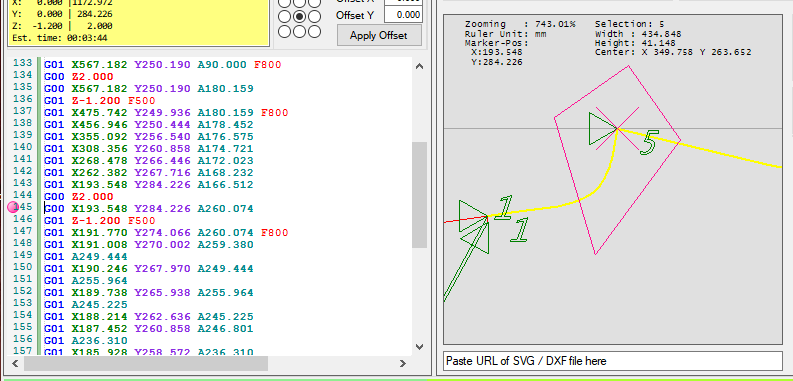

你有它应该是什么样子的截图吗？我不明白 D1/D2 Pen up/down 和 M14/M15 Knife up/down 的组合。 看起来不正确

H1*ZX19000*M70*N1*M26*D2*M15*X5379Y2965*M14*X5457Y2903*X5517Y2901*X5627Y2901*X5737Y2903*X5847Y2909*X5947Y2918*X6065Y2931*X6182Y2947*X6299Y2965*X6329Y2972*X6454Y2998*X6553Y3022*X6649Y3050*X6721Y2865*X6721Y2865*M19*X6668Y2847*D2*M15*X6721Y2865*M14*X7165Y1744*X7165Y1744*M19*X7112Y1726*D2*M15*X7165Y1744*M14*X7251Y1485*X7158Y1470*X6880Y1407*X6849Y1401*X6769Y1382*X6740Y1374*X6668Y1350*X6473Y749*X6473Y749*M19*X6420Y767*D2*M15*X6473Y749*M14*X6498Y631*X6526Y495*X6553Y359*X6569Y267*X6592Y134*X6614Y0*X6570Y3*X6428Y13*X6286Y25*X6144Y37*X6002Y50*X5860Y64*X5718Y78*X5651Y86*X5511Y102*X5371Y120*X5231Y138*X5091Y158*X4951Y179*X4900Y187*X4778Y208*X4656Y231*X4535Y257*X4443Y279*X4318Y311*X4193Y346*X4069Y382*X4069Y382*M19*X4069Y438*D2*M15*X4069Y382*M14*X2391Y382*X650Y383*X628Y385*X559Y392*X491Y404*X424Y421*X398Y429*X353Y447*X310Y469*X269Y494*X257Y504*X235Y526*X216Y550*X200Y576*X187Y603*X185Y608*X170Y651*X159Y695*X153Y739*X150Y783*X0Y783*X0Y981*X45Y2113*X51Y2213*X299Y2203*X299Y2203*M19*X297Y2147*D2*M15*X299Y2203*M14*X449Y2196*X449Y2196*M19*X447Y2140*D2*M15*X449Y2196*M14*X883Y2179*X883Y2179*M19*X881Y2123*D2*M15*X883Y2179*M14*X939Y2175*X1079Y2164*X1219Y2153*X1359Y2140*X1499Y2126*X1532Y2123*X1677Y2107*X1822Y2091*X1967Y2075*X2112Y2058*X2257Y2040*X2402Y2022*X2402Y2022*M19*X2395Y1966*D2*M15*X2402Y2022*M14*X2444Y2021*X2552Y2017*X2660Y2017*X2705Y2019*X2838Y2023*X2971Y2030*X3104Y2037*X3121Y2039*X3260Y2049*X3399Y2061*X3538Y2074*X3677Y2088*X3751Y2097*X3868Y2113*X3984Y2132*X3984Y2132*M19*X3995Y2077*D2*M15*X3984Y2132*M14*X4021Y2143*X4124Y2175*X4151Y2184*X4242Y2218*X4242Y2218*M19*X4257Y2164*D2*M15*X4242Y2218*M14*X4336Y2247*X4432Y2282*X4527Y2321*X4627Y2368*X4723Y2418*X4817Y2472*X4823Y2476*X4934Y2558*X5042Y2644*X5147Y2733*X5198Y2779*X5291Y2870*X5379Y2965*D2*M15*N2*M25*D2*M15*X86Y3359*M14*X331Y3351*X335Y3350*X335Y3350*M19*X330Y3294*D2*M15*X335Y3350*M14*X483Y3346*X486Y3345*X486Y3345*M19*X481Y3289*D2*M15*X486Y3345*M14*X617Y3336*X754Y3325*X891Y3312*X1028Y3298*X1134Y3286*X1270Y3269*X1406Y3251*X1541Y3231*X1635Y3218*X1774Y3199*X1913Y3180*X2053Y3163*X2108Y3157*X2234Y3145*X2360Y3135*X2360Y3135*M19*X2361Y3079*D2*M15*X2360Y3135*M14*X2478Y3146*X2595Y3159*X2600Y3160*X2719Y3178*X2838Y3198*X2867Y3204*X3009Y3231*X3151Y3259*X3292Y3288*X3409Y3313*X3548Y3344*X3687Y3376*X3692Y3377*X3692Y3377*M19*X3702Y3322*D2*M15*X3692Y3377*M14*X3893Y3424*X3893Y3424*M19*X3907Y3370*D2*M15*X3893Y3424*M14*X3951Y3441*X4070Y3479*X4167Y3513*X4295Y3559*X4372Y3588*X4415Y3517*X4427Y3498*X4444Y3476*X4465Y3453*X4471Y3448*X4486Y3436*X4502Y3427*X4519Y3419*X4522Y3418*X4599Y3395*X4606Y3394*X4671Y3380*X4675Y3379*X4675Y3379*M19*X4668Y3323*D2*M15*X4675Y3379*M14*X4740Y3379*X4815Y3380*X4826Y3382*X4826Y3382*M19*X4828Y3326*D2*M15*X4826Y3382*M14*X5026Y3437*X5116Y3460*X5204Y3413*X5139Y3292*X5127Y3269*X5074Y3170*X5062Y3149*X5002Y3049*X4971Y2997*X4905Y2890*X4871Y2839*X4799Y2735*X4738Y2657*X4676Y2584*X4656Y2562*X4572Y2475*X4483Y2393*X4450Y2366*X4373Y2305*X4293Y2251*X4293Y2251*M19*X4269Y2302*D2*M15*X4293Y2251*M14*X4286Y2247*X4216Y2214*X4144Y2185*X4126Y2179*X4057Y2158*X3994Y2143*X3994Y2143*M19*X3989Y2199*D2*M15*X3994Y2143*M14*X3987Y2142*X3926Y2140*X3820Y2140*X3714Y2143*X3684Y2145*X3557Y2153*X3430Y2164*X3304Y2177*X3208Y2187*X3075Y2199*X2942Y2210*X2809Y2218*X2754Y2221*X2625Y2226*X2496Y2228*X2367Y2228*X2364Y2227*X2364Y2227*M19*X2364Y2283*D2*M15*X2364Y2227*M14*X2242Y2220*X2102Y2211*X1962Y2204*X1822Y2198*X1682Y2192*X1542Y2188*X1516Y2188*X1380Y2185*X1244Y2185*X1108Y2186*X972Y2188*X836Y2191*X836Y2191*M19*X839Y2247*D2*M15*X836Y2191*M14*X402Y2208*X402Y2208*M19*X405Y2264*D2*M15*X402Y2208*M14*X253Y2214*X249Y2214*X249Y2214*M19*X255Y2270*D2*M15*X249Y2214*M14*X0Y2224*X8Y2332*X79Y3270*X86Y3359*D2*M15*N3*M26*D2*M15*X5379Y3236*M14*X5291Y3331*X5198Y3422*X5147Y3468*X5042Y3557*X4934Y3643*X4823Y3725*X4817Y3729*X4723Y3783*X4627Y3833*X4527Y3880*X4432Y3919*X4336Y3954*X4242Y3983*X4242Y3983*M19*X4257Y4037*D2*M15*X4242Y3983*M14*X4151Y4017*X4124Y4026*X4021Y4058*X3984Y4069*X3984Y4069*M19*X3995Y4124*D2*M15*X3984Y4069*M14*X3868Y4088*X3751Y4104*X3677Y4113*X3538Y4127*X3399Y4140*X3260Y4152*X3121Y4162*X3104Y4164*X2971Y4171*X2838Y4178*X2705Y4182*X2660Y4184*X2552Y4184*X2444Y4180*X2402Y4179*X2402Y4179*M19*X2395Y4235*D2*M15*X2402Y4179*M14*X2257Y4161*X2112Y4143*X1967Y4126*X1822Y4110*X1677Y4094*X1532Y4078*X1499Y4075*X1359Y4061*X1219Y4048*X1079Y4037*X939Y4026*X883Y4022*X883Y4022*M19*X881Y4078*D2*M15*X883Y4022*M14*X449Y4005*X449Y4005*M19*X447Y4061*D2*M15*X449Y4005*M14*X299Y3998*X299Y3998*M19*X297Y4054*D2*M15*X299Y3998*M14*X51Y3988*X45Y4088*X0Y5220*X0Y5418*X150Y5418*X153Y5462*X159Y5506*X170Y5550*X185Y5593*X187Y5598*X200Y5625*X216Y5651*X235Y5675*X257Y5697*X269Y5707*X310Y5732*X353Y5754*X398Y5772*X424Y5780*X491Y5797*X559Y5809*X628Y5816*X650Y5818*X2391Y5819*X4069Y5819*X4069Y5819*M19*X4069Y5763*D2*M15*X4069Y5819*M14*X4193Y5855*X4318Y5890*X4443Y5922*X4535Y5944*X4656Y5970*X4778Y5993*X4900Y6014*X4951Y6022*X5091Y6043*X5231Y6063*X5371Y6081*X5511Y6099*X5651Y6115*X5718Y6123*X5860Y6137*X6002Y6151*X6144Y6164*X6286Y6176*X6428Y6188*X6570Y6198*X6614Y6201*X6592Y6067*X6569Y5934*X6553Y5842*X6526Y5706*X6498Y5570*X6473Y5452*X6473Y5452*M19*X6420Y5434*D2*M15*X6473Y5452*M14*X6668Y4851*X6740Y4827*X6769Y4819*X6849Y4800*X6880Y4794*X7158Y4731*X7251Y4716*X7165Y4457*X7165Y4457*M19*X7112Y4475*D2*M15*X7165Y4457*M14*X6721Y3336*X6721Y3336*M19*X6668Y3354*D2*M15*X6721Y3336*M14*X6649Y3151*X6553Y3179*X6454Y3203*X6329Y3229*X6299Y3236*X6182Y3254*X6065Y3270*X5947Y3283*X5847Y3292*X5737Y3298*X5627Y3300*X5517Y3300*X5457Y3298*X5379Y3236*D2*M15*N4*M26*D2*M15*X0Y6094*M14*X20Y6193*X20Y6195*X20Y6195*M19*X75Y6186*D2*M15*X20Y6195*M14*X43Y6307*X43Y6309*X43Y6309*M19*X98Y6299*D2*M15*X43Y6309*M14*X225Y7637*X237Y7731*X331Y7724*X736Y7692*X736Y7692*M19*X732Y7636*D2*M15*X736Y7692*M14*X870Y7680*X985Y7672*X1119Y7664*X1234Y7658*X1234Y7658*M19*X1232Y7602*D2*M15*X1234Y7658*M14*X1378Y7653*X1522Y7648*X1666Y7644*X1810Y7641*X1909Y7639*X2055Y7637*X2201Y7635*X2347Y7634*X2493Y7634*X2639Y7634*X2718Y7633*X2718Y7633*M19*X2720Y7577*D2*M15*X2718Y7633*M14*X2858Y7636*X2998Y7641*X3138Y7647*X3278Y7654*X3418Y7662*X3557Y7672*X3696Y7682*X3715Y7684*X3857Y7696*X3999Y7709*X4141Y7723*X4283Y7738*X4425Y7754*X4566Y7771*X4707Y7789*X4848Y7808*X4859Y7809*X4999Y7828*X4969Y7689*X4951Y7596*X4944Y7550*X4933Y7457*X4929Y7411*X4928Y7343*X4929Y7313*X4935Y7241*X4939Y7209*X4938Y7196*X4938Y7196*M19*X4882Y7196*D2*M15*X4938Y7196*M14*X4936Y7145*X4937Y7081*X4938Y7068*X4945Y7001*X4958Y6935*X4960Y6926*X4976Y6877*X4997Y6829*X5004Y6816*X5031Y6770*X5062Y6727*X5070Y6717*X5177Y6605*X5177Y6605*M19*X5146Y6559*D2*M15*X5177Y6605*M14*X5185Y6598*X5300Y6522*X5385Y6469*X5507Y6396*X5631Y6326*X5636Y6323*X5736Y6266*X5756Y6167*X5606Y6137*X5472Y6111*X5337Y6086*X5247Y6070*X5106Y6046*X4965Y6024*X4823Y6002*X4765Y5993*X4629Y5976*X4493Y5960*X4357Y5946*X4220Y5933*X4083Y5922*X3946Y5911*X3809Y5903*X3672Y5896*X3632Y5894*X3500Y5889*X3368Y5887*X3236Y5887*X3104Y5888*X2972Y5891*X2840Y5897*X2720Y5904*X2720Y5904*M19*X2722Y5960*D2*M15*X2720Y5904*M14*X2587Y5919*X2454Y5935*X2322Y5954*X2190Y5974*X2058Y5996*X2042Y5999*X1902Y6024*X1762Y6051*X1623Y6078*X1484Y6107*X1345Y6137*X1206Y6168*X1132Y6185*X1125Y6144*X1125Y6144*M19*X1070Y6155*D2*M15*X1125Y6144*M14*X1102Y5996*X1102Y5996*M19*X1047Y6007*D2*M15*X1102Y5996*M14*X1087Y5894*X985Y5913*X100Y6075*X0Y6094*D2*M15*N5*M26*D2*M15*X0Y9563*M14*X100Y9582*X985Y9744*X1087Y9763*X1102Y9661*X1102Y9661*M19*X1047Y9650*D2*M15*X1102Y9661*M14*X1125Y9513*X1125Y9513*M19*X1070Y9502*D2*M15*X1125Y9513*M14*X1132Y9472*X1206Y9489*X1345Y9520*X1484Y9550*X1623Y9579*X1762Y9606*X1902Y9633*X2042Y9658*X2058Y9661*X2190Y9683*X2322Y9703*X2454Y9722*X2587Y9738*X2720Y9753*X2720Y9753*M19*X2722Y9697*D2*M15*X2720Y9753*M14*X2840Y9760*X2972Y9766*X3104Y9769*X3236Y9770*X3368Y9770*X3500Y9768*X3632Y9763*X3672Y9761*X3809Y9754*X3946Y9746*X4083Y9735*X4220Y9724*X4357Y9711*X4493Y9697*X4629Y9681*X4765Y9664*X4823Y9655*X4965Y9633*X5106Y9611*X5247Y9587*X5337Y9571*X5472Y9546*X5606Y9520*X5756Y9490*X5736Y9391*X5636Y9334*X5631Y9331*X5507Y9261*X5385Y9188*X5300Y9135*X5185Y9059*X5177Y9051*X5177Y9051*M19*X5146Y9097*D2*M15*X5177Y9051*M14*X5070Y8940*X5062Y8930*X5031Y8887*X5004Y8841*X4997Y8828*X4976Y8780*X4960Y8731*X4958Y8722*X4945Y8656*X4938Y8589*X4937Y8576*X4936Y8512*X4938Y8460*X4938Y8460*M19*X4882Y8460*D2*M15*X4938Y8460*M14*X4939Y8448*X4935Y8416*X4929Y8344*X4928Y8314*X4929Y8246*X4933Y8200*X4944Y8107*X4951Y8061*X4969Y7968*X4999Y7829*X4859Y7848*X4848Y7849*X4707Y7868*X4566Y7886*X4425Y7903*X4283Y7919*X4141Y7934*X3999Y7948*X3857Y7961*X3715Y7973*X3696Y7975*X3557Y7985*X3418Y7995*X3278Y8003*X3138Y8010*X2998Y8016*X2858Y8021*X2718Y8024*X2718Y8024*M19*X2720Y8080*D2*M15*X2718Y8024*M14*X2639Y8023*X2493Y8023*X2347Y8023*X2201Y8022*X2055Y8020*X1909Y8018*X1810Y8016*X1666Y8013*X1522Y8009*X1378Y8004*X1234Y7999*X1234Y7999*M19*X1232Y8055*D2*M15*X1234Y7999*M14*X1119Y7993*X985Y7985*X870Y7977*X736Y7965*X736Y7965*M19*X732Y8021*D2*M15*X736Y7965*M14*X331Y7933*X237Y7926*X225Y8020*X43Y9347*X43Y9347*M19*X98Y9357*D2*M15*X43Y9347*M14*X43Y9350*X20Y9461*X20Y9461*M19*X75Y9470*D2*M15*X20Y9461*M14*X20Y9464*X0Y9563*D2*M15*N6*M26*D2*M15*X1979Y11231M43*D2*M15*X6576Y9469*M14*X6452Y9477*X6318Y9487*X6177Y9497*X6036Y9509*X5895Y9522*X5754Y9536*X5613Y9551*X5472Y9567*X5332Y9584*X5192Y9602*X5052Y9620*X4994Y9629*X4861Y9649*X4729Y9671*X4597Y9694*X4465Y9720*X4334Y9747*X4203Y9776*X4084Y9804*X4084Y9804*M19*X4084Y9860*D2*M15*X4084Y9804*M14*X4072Y9807*X2391Y9807*X662Y9808*X626Y9810*X558Y9815*X491Y9825*X425Y9840*X385Y9853*X347Y9870*X311Y9890*X277Y9913*X266Y9922*X241Y9946*X218Y9973*X199Y10002*X184Y10033*X179Y10044*X166Y10084*X156Y10125*X151Y10166*X150Y10207*X0Y10208*X0Y10404*X45Y11538*X49Y11640*X299Y11628*X299Y11628*M19*X297Y11572*D2*M15*X299Y11628*M14*X449Y11621*X449Y11621*M19*X447Y11565*D2*M15*X449Y11621*M14*X883Y11604*X883Y11604*M19*X882Y11548*D2*M15*X883Y11604*M14*X893Y11604*X1037Y11592*X1181Y11580*X1325Y11567*X1469Y11553*X1612Y11539*X1682Y11532*X1826Y11516*X1970Y11500*X2114Y11483*X2258Y11466*X2402Y11447*X2406Y11446*X2406Y11446*M19*X2399Y11390*D2*M15*X2406Y11446*M14*X2475Y11445*X2595Y11443*X2715Y11443*X2846Y11448*X2975Y11454*X3104Y11462*X3121Y11464*X3260Y11474*X3399Y11486*X3538Y11499*X3677Y11513*X3751Y11522*X3868Y11538*X3984Y11557*X3984Y11557*M19*X3995Y11502*D2*M15*X3984Y11557*M14*X4017Y11564*X4131Y11588*X4151Y11593*X4256Y11620*X4256Y11620*M19*X4271Y11566*D2*M15*X4256Y11620*M14*X4345Y11652*X4443Y11692*X4539Y11737*X4631Y11784*X4731Y11841*X4828Y11901*X4855Y11920*X4958Y11996*X4986Y12018*X5086Y12100*X5108Y12118*X5197Y12196*X5213Y12211*X5302Y12299*X5334Y12329*X5377Y12327*X5399Y12327*X5515Y12323*X5631Y12323*X5747Y12326*X5863Y12332*X5969Y12341*X6081Y12355*X6192Y12371*X6302Y12391*X6330Y12397*X6456Y12423*X6560Y12448*X6650Y12471*X6679Y12383*X6710Y12291*X6711Y12288*X6711Y12288*M19*X6658Y12270*D2*M15*X6711Y12288*M14*X7160Y11166*X7160Y11166*M19*X7107Y11148*D2*M15*X7160Y11166*M14*X7214Y11023*X7255Y10912*X7139Y10888*X7044Y10869*X6925Y10843*X6796Y10812*X6669Y10778*X6474Y10177*X6474Y10177*M19*X6418Y10180*D2*M15*X6474Y10177*M14*X6473Y10174*X6558Y9591*X6576Y9469*D2*M15*N7*M26*D2*M15*X1929Y13274M43*D2*M15*X20Y14100*M14*X268Y14092*X271Y14091*X271Y14091*M19*X267Y14035*D2*M15*X271Y14091*M14*X419Y14087*X419Y14087*M19*X417Y14031*D2*M15*X419Y14087*M14*X552Y14079*X685Y14069*X818Y14058*X951Y14044*X1083Y14028*X1215Y14011*X1257Y14005*X1396Y13983*X1534Y13961*X1672Y13938*X1810Y13912*X1948Y13886*X2085Y13858*X2222Y13829*X2288Y13814*X2288Y13814*M19*X2288Y13758*D2*M15*X2288Y13814*M14*X2294Y13813*X2434Y13825*X2575Y13836*X2716Y13846*X2857Y13855*X2998Y13862*X3105Y13868*X3235Y13872*X3365Y13875*X3495Y13875*X3625Y13874*X3660Y13873*X3660Y13873*M19*X3659Y13817*D2*M15*X3660Y13873*M14*X3757Y13868*X3773Y13867*X3870Y13856*X3883Y13855*X3883Y13855*M19*X3877Y13799*D2*M15*X3883Y13855*M14*X3982Y13842*X4080Y13825*X4196Y13803*X4205Y13802*X4321Y13777*X4330Y13775*X4443Y13751*X4422Y13653*X4383Y13610*X4349Y13563*X4319Y13516*X4300Y13461*X4285Y13405*X4272Y13323*X4265Y13251*X4261Y13168*X4262Y13100*X4261Y13092*X4261Y13092*M19*X4205Y13095*D2*M15*X4261Y13092*M14*X4255Y13016*X4253Y12934*X4255Y12838*X4262Y12748*X4271Y12697*X4284Y12647*X4295Y12616*X4309Y12583*X4327Y12552*X4345Y12526*X4385Y12477*X4421Y12439*X4421Y12439*M19*X4387Y12395*D2*M15*X4421Y12439*M14*X4425Y12436*X4427Y12434*X4502Y12388*X4538Y12368*X4613Y12331*X4655Y12312*X4738Y12280*X4790Y12263*X4872Y12240*X4929Y12226*X5015Y12205*X5074Y12124*X4965Y12046*X4881Y11988*X4794Y11934*X4704Y11885*X4612Y11840*X4518Y11800*X4504Y11794*X4423Y11765*X4340Y11740*X4256Y11721*X4171Y11706*X4085Y11697*X4072Y11696*X4072Y11696*M19*X4066Y11752*D2*M15*X4072Y11696*M14*X3986Y11688*X3900Y11685*X3833Y11687*X3768Y11694*X3619Y11710*X3470Y11726*X3321Y11742*X3172Y11759*X3023Y11775*X2874Y11791*X2744Y11805*X2598Y11820*X2452Y11835*X2311Y11849*X2311Y11849*M19*X2311Y11905*D2*M15*X2311Y11849*M14*X1786Y11771*X1260Y11692*X1114Y11682*X968Y11672*X822Y11663*X676Y11654*X601Y11650*X504Y11647*X451Y11646*X451Y11646*M19*X452Y11702*D2*M15*X451Y11646*M14*X301Y11644*X301Y11644*M19*X301Y11700*D2*M15*X301Y11644*M14*X55Y11640*X50Y11730*X42Y11874*X34Y12018*X28Y12162*X22Y12306*X21Y12324*X16Y12469*X11Y12614*X7Y12759*X3Y12904*X2Y12989*X0Y13130*X0Y13272*X0Y13414*X1Y13555*X4Y13692*X8Y13829*X13Y13966*X15Y14003*X20Y14100*D2*M15*N8*M26*D2*M15*X6758Y13038M43*D2*M15*X11355Y14800*M14*X11337Y14678*X11252Y14095*X11253Y14091*X11253Y14091*M19*X11197Y14088*D2*M15*X11253Y14091*M14*X11448Y13491*X11575Y13457*X11704Y13426*X11823Y13400*X11918Y13381*X12034Y13357*X11993Y13246*X11939Y13103*X11939Y13103*M19*X11886Y13121*D2*M15*X11939Y13103*M14*X11490Y11980*X11490Y11980*M19*X11437Y11998*D2*M15*X11490Y11980*M14*X11489Y11978*X11458Y11886*X11429Y11798*X11339Y11821*X11235Y11846*X11109Y11872*X11081Y11878*X10971Y11898*X10860Y11914*X10748Y11928*X10642Y11937*X10526Y11943*X10410Y11946*X10294Y11946*X10178Y11942*X10156Y11942*X10113Y11940*X10081Y11970*X9992Y12058*X9976Y12073*X9887Y12151*X9865Y12169*X9765Y12251*X9737Y12273*X9634Y12349*X9607Y12368*X9510Y12428*X9410Y12485*X9318Y12532*X9222Y12577*X9124Y12617*X9035Y12649*X9035Y12649*M19*X9050Y12703*D2*M15*X9035Y12649*M14*X8930Y12676*X8910Y12681*X8796Y12705*X8763Y12712*X8763Y12712*M19*X8774Y12767*D2*M15*X8763Y12712*M14*X8647Y12731*X8530Y12747*X8456Y12756*X8317Y12770*X8178Y12783*X8039Y12795*X7900Y12805*X7883Y12807*X7754Y12815*X7625Y12821*X7494Y12826*X7374Y12826*X7254Y12824*X7185Y12822*X7185Y12822*M19*X7178Y12878*D2*M15*X7185Y12822*M14*X7181Y12822*X7037Y12803*X6893Y12786*X6749Y12769*X6605Y12753*X6461Y12737*X6391Y12730*X6248Y12716*X6104Y12702*X5960Y12689*X5816Y12677*X5672Y12665*X5662Y12665*X5662Y12665*M19*X5661Y12721*D2*M15*X5662Y12665*M14*X5228Y12648*X5228Y12648*M19*X5226Y12704*D2*M15*X5228Y12648*M14*X5078Y12641*X5078Y12641*M19*X5076Y12697*D2*M15*X5078Y12641*M14*X4828Y12629*X4824Y12731*X4779Y13865*X4779Y14061*X4929Y14062*X4930Y14103*X4935Y14144*X4945Y14185*X4958Y14225*X4963Y14236*X4978Y14267*X4997Y14296*X5020Y14323*X5045Y14347*X5056Y14356*X5090Y14379*X5126Y14399*X5164Y14416*X5204Y14429*X5270Y14444*X5337Y14454*X5405Y14459*X5441Y14461*X7170Y14462*X8851Y14462*X8863Y14464*X8863Y14464*M19*X8863Y14408*D2*M15*X8863Y14464*M14*X8982Y14493*X9113Y14522*X9244Y14549*X9376Y14575*X9508Y14598*X9640Y14620*X9773Y14640*X9831Y14649*X9971Y14667*X10111Y14685*X10251Y14702*X10392Y14718*X10533Y14733*X10674Y14747*X10815Y14760*X10956Y14772*X11097Y14782*X11231Y14792*X11355Y14800*D2*M15*N9*M26*D2*M15*X6668Y10774*M14*X6918Y10774*X6918Y10774*M19*X6918Y10718*D2*M15*X6918Y10774*M14*X7071Y10774*X7071Y10774*M19*X7071Y10718*D2*M15*X7071Y10774*M14*X7110Y10772*X7257Y10765*X7404Y10758*X7551Y10750*X7698Y10742*X7845Y10733*X7992Y10725*X8139Y10716*X8191Y10713*X8337Y10703*X8483Y10694*X8629Y10683*X8775Y10673*X8921Y10661*X8921Y10661*M19*X8921Y10605*D2*M15*X8921Y10661*M14*X8996Y10667*X9132Y10677*X9267Y10689*X9402Y10702*X9429Y10705*X9568Y10721*X9707Y10738*X9846Y10756*X9985Y10775*X10130Y10794*X10274Y10813*X10419Y10831*X10477Y10838*X10601Y10850*X10714Y10860*X10858Y10871*X11002Y10882*X11146Y10892*X11167Y10893*X11309Y10902*X11451Y10910*X11593Y10917*X11593Y10917*M19*X11596Y10861*D2*M15*X11593Y10917*M14*X12237Y10917*X12337Y10917*X12336Y10817*X12336Y9309*X12336Y9309*M19*X12280Y9309*D2*M15*X12336Y9309*M14*X12336Y9306*X12285Y8496*X12279Y8401*X12184Y8403*X12140Y8404*X12037Y8402*X12003Y8401*X11906Y8393*X11902Y8392*X11902Y8392*M19*X11900Y8448*D2*M15*X11902Y8392*M14*X11838Y8382*X11740Y8363*X11701Y8354*X11626Y8333*X11621Y8326*X11621Y8326*M19*X11580Y8364*D2*M15*X11621Y8326*M14*X11568Y8252*X11455Y8332*X11452Y8334*X11381Y8382*X11373Y8387*X11303Y8427*X11291Y8434*X11221Y8468*X11208Y8474*X11135Y8502*X11120Y8508*X11015Y8548*X11000Y8553*X10893Y8588*X10874Y8593*X10769Y8622*X10750Y8627*X10644Y8651*X10644Y8651*M19*X10659Y8705*D2*M15*X10644Y8651*M14*X10598Y8663*X10508Y8682*X10459Y8690*X10376Y8701*X10234Y8719*X10093Y8737*X9952Y8753*X9811Y8768*X9670Y8783*X9529Y8796*X9388Y8809*X9292Y8816*X9173Y8822*X9054Y8824*X8935Y8824*X8932Y8823*X8932Y8823*M19*X8929Y8879*D2*M15*X8932Y8823*M14*X8822Y8806*X8682Y8784*X8614Y8774*X8466Y8752*X8318Y8730*X8170Y8709*X8022Y8687*X7874Y8665*X7852Y8663*X7721Y8650*X7590Y8639*X7459Y8629*X7453Y8629*X7325Y8623*X7197Y8619*X7069Y8616*X7069Y8616*M19*X7068Y8672*D2*M15*X7069Y8616*M14*X6917Y8618*X6917Y8618*M19*X6919Y8674*D2*M15*X6917Y8618*M14*X6668Y8620*X6668Y8717*X6668Y10674*X6668Y10774*D2*M15*N10*M26*D2*M15*X5489Y6517*M14*X5496Y6600*X5553Y7303*X5553Y7303*M19*X5609Y7297*D2*M15*X5553Y7303*M14*X5674Y8476*X5684Y8572*X5780Y8565*X5780Y8565*M19*X5776Y8509*D2*M15*X5780Y8565*M14*X6183Y8538*X6183Y8538*M19*X6180Y8482*D2*M15*X6183Y8538*M14*X6322Y8529*X6433Y8522*X6572Y8515*X6683Y8510*X6688Y8509*X6688Y8509*M19*X6683Y8453*D2*M15*X6688Y8509*M14*X6830Y8505*X6977Y8500*X7124Y8496*X7271Y8492*X7418Y8489*X7542Y8486*X7687Y8483*X7832Y8481*X7977Y8480*X8122Y8480*X8162Y8479*X8162Y8479*M19*X8164Y8423*D2*M15*X8162Y8479*M14*X8165Y8479*X8302Y8480*X8439Y8483*X8576Y8487*X8713Y8492*X8850Y8499*X8987Y8507*X9124Y8517*X9161Y8520*X9301Y8532*X9441Y8545*X9581Y8559*X9721Y8574*X9861Y8591*X10000Y8608*X10139Y8627*X10278Y8646*X10310Y8651*X10386Y8662*X10416Y8591*X10431Y8559*X10448Y8529*X10462Y8509*X10490Y8476*X10521Y8445*X10534Y8434*X10570Y8408*X10601Y8389*X10692Y8342*X10754Y8313*X10754Y8313*M19*X10730Y8262*D2*M15*X10754Y8313*M14*X10885Y8251*X10885Y8251*M19*X10860Y8201*D2*M15*X10885Y8251*M14*X11009Y8191*X11132Y8128*X11254Y8062*X11374Y7995*X11493Y7924*X11609Y7851*X11723Y7775*X11834Y7696*X11943Y7614*X11978Y7586*X11978Y7586*M19*X11946Y7540*D2*M15*X11978Y7586*M14*X12036Y7531*X12086Y7477*X12133Y7419*X12176Y7358*X12214Y7294*X12244Y7236*X12267Y7182*X12286Y7126*X12301Y7069*X12312Y7011*X12318Y6952*X12320Y6892*X12320Y6874*X12320Y6874*M19*X12264Y6870*D2*M15*X12320Y6874*M14*X12320Y6870*X12320Y6807*X12315Y6744*X12306Y6681*X12292Y6619*X12274Y6560*X12253Y6507*X12227Y6456*X12196Y6407*X12159Y6361*X12130Y6328*X12130Y6328*M19*X12088Y6365*D2*M15*X12130Y6328*M14*X12039Y6230*X11945Y6136*X11851Y6050*X11848Y6047*X11758Y5972*X11665Y5900*X11569Y5833*X11544Y5816*X11544Y5816*M19*X11514Y5863*D2*M15*X11544Y5816*M14*X11213Y5618*X11209Y5518*X11026Y5526*X10705Y5541*X10209Y5573*X10067Y5588*X9925Y5605*X9783Y5623*X9641Y5641*X9499Y5660*X9357Y5680*X9215Y5701*X9132Y5714*X8991Y5736*X8850Y5760*X8710Y5784*X8570Y5809*X8430Y5836*X8290Y5863*X8164Y5889*X8164Y5889*M19*X8175Y5944*D2*M15*X8164Y5889*M14*X8015Y5918*X7866Y5948*X7717Y5977*X7568Y6007*X7443Y6032*X7294Y6062*X7145Y6092*X6996Y6122*X6847Y6152*X6698Y6182*X6644Y6193*X6460Y6243*X6460Y6243*M19*X6473Y6298*D2*M15*X6460Y6243*M14*X5569Y6495*X5489Y6517*D2*M15*N11*M26*D2*M15*X7198Y2145*M14*X7278Y2167*X8169Y2419*X8169Y2419*M19*X8182Y2364*D2*M15*X8169Y2419*M14*X8353Y2469*X8407Y2480*X8556Y2510*X8705Y2540*X8854Y2570*X9003Y2600*X9152Y2630*X9277Y2655*X9426Y2685*X9575Y2714*X9724Y2744*X9873Y2773*X9873Y2773*M19*X9884Y2718*D2*M15*X9873Y2773*M14*X9999Y2799*X10139Y2826*X10279Y2853*X10419Y2878*X10559Y2902*X10700Y2926*X10841Y2948*X10924Y2961*X11066Y2982*X11208Y3002*X11350Y3021*X11492Y3039*X11634Y3057*X11776Y3074*X11918Y3089*X12414Y3121*X12735Y3136*X12918Y3144*X12922Y3044*X13253Y2846*X13253Y2846*M19*X13223Y2799*D2*M15*X13253Y2846*M14*X13278Y2829*X13374Y2762*X13467Y2690*X13557Y2615*X13560Y2612*X13654Y2526*X13748Y2432*X13839Y2334*X13839Y2334*M19*X13797Y2297*D2*M15*X13839Y2334*M14*X13868Y2301*X13905Y2255*X13936Y2206*X13962Y2155*X13983Y2102*X14001Y2043*X14015Y1981*X14024Y1918*X14029Y1855*X14029Y1792*X14029Y1788*X14029Y1788*M19*X13973Y1792*D2*M15*X14029Y1788*M14*X14029Y1770*X14027Y1710*X14021Y1651*X14010Y1593*X13995Y1536*X13976Y1480*X13953Y1426*X13923Y1368*X13885Y1304*X13842Y1243*X13795Y1185*X13745Y1131*X13687Y1076*X13687Y1076*M19*X13655Y1122*D2*M15*X13687Y1076*M14*X13652Y1048*X13543Y966*X13432Y887*X13318Y811*X13202Y738*X13083Y667*X12963Y600*X12841Y534*X12718Y471*X12594Y411*X12594Y411*M19*X12569Y461*D2*M15*X12594Y411*M14*X12463Y349*X12463Y349*M19*X12439Y400*D2*M15*X12463Y349*M14*X12401Y320*X12310Y273*X12279Y254*X12243Y228*X12230Y217*X12199Y186*X12171Y153*X12157Y133*X12
