从 WebUI 发出宏命令时出现问题 #136

哈米德

请只提交最新版本代码的错误。您可以在启动消息中检查版本号。

引导消息：

[MSG:INFO: FluidNC v3.2.5]
[MSG:INFO: Compiled with ESP32 SDK:v3.3.5-1-g85c43024c]
[MSG:INFO: Configuration file:config.yaml]
[MSG:INFO: Machine ESP32 Dev Controller V4]
[MSG:INFO: Board ESP32 Dev Controller V4]
[MSG:INFO: SPI SCK:gpio.18 MOSI:gpio.23 MISO:gpio.19]
[MSG:INFO: SD Card cs_pin:gpio.5 dectect:NO_PIN]
[MSG:INFO: Stepping:RMT Pulse:2us Dsbl Delay:250us Dir Delay:1us Idle Delay:255ms]
[MSG:INFO: Axis count 3]
[MSG:INFO: Shared stepper disable gpio.13]
[MSG:INFO: Axis X (0.000,1000.000)]
[MSG:INFO:   Motor0]
[MSG:INFO:     Standard Stepper Step:gpio.12:low Dir:gpio.14:low Disable:NO_PIN]
[MSG:INFO:     All Limit gpio.17:low:pu]
[MSG:INFO: Axis Y (-1000.000,0.000)]
[MSG:INFO: Axis Z (-5.000,0.000)]
[MSG:INFO:   Motor0]
[MSG:INFO:     RC Servo Pin:gpio.27 Pulse Len(650,1700)]
[MSG:INFO: Kinematic system: Cartesian]
[MSG:INFO: PWM Spindle Ena:gpio.22 Out:gpio.2 Dir:NO_PIN Freq:5000Hz Res:13bits]
[MSG:INFO: Using spindle PWM]
[MSG:INFO: Connecting to STA SSID:3212]
[MSG:INFO: Connecting.]
[MSG:INFO: Connecting..]
[MSG:INFO: Connected - IP is 10.88.111.15]
[MSG:INFO: WiFi on]
[MSG:INFO: Start mDNS with hostname:http://fluidnc.local/]
[MSG:INFO: SSDP Started]
[MSG:INFO: HTTP started on port 80]
[MSG:INFO: Telnet started on port 23]

Grbl 3.2 [FluidNC v3.2.5 (wifi) '$' for help]
[MSG:INFO: '$H'|'$X' to unlock]

请回答以下问题。

您使用的是什么版本的固件？
用户界面：2.1b72/固件：fluidnc v3.2.5

问题是否可重复？
是的

什么情况下会出现bug？

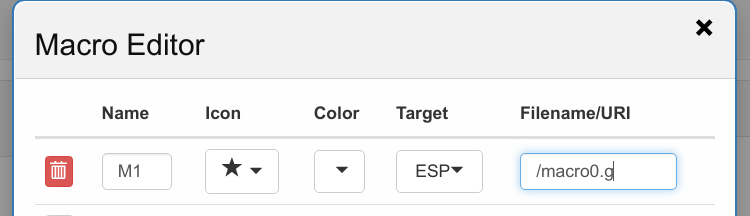

当我在 webui 界面下创建宏时会出现这种情况。

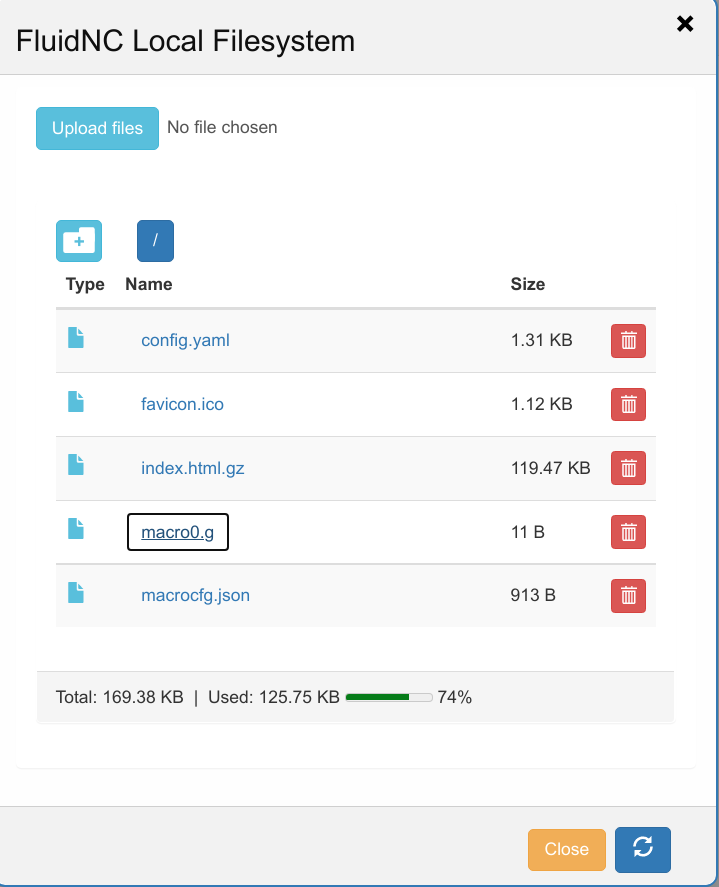

我上传macro0.g到 esplocalfs但每当我点击按钮时，什么都没有发生，之后，没有其他命令会起作用。
这是我单击宏后的日志：

$G
[GC:G0 G54 G17 G21 G90 G94 M5 M9 T0 F0 S0]
ok
<Alarm|MPos:0.000,0.000,0.000|FS:0,0|WCO:3.000,0.000,-2.500>
$X
<Alarm|MPos:0.000,0.000,0.000|FS:0,0|Ov:100,100,100>
[MSG:INFO: Caution: Unlocked]
ok
<Idle|MPos:0.000,0.000,0.000|FS:0,0>
[ESP700]/macro0.g
<Idle|MPos:0.000,0.000,0.000|FS:0,0|WCO:3.000,0.000,-2.500>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|SD:100.00,/localfs/macro0.g>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|SD:100.00,/localfs/macro0.g>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|SD:100.00,/localfs/macro0.g>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|SD:100.00,/localfs/macro0.g>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|SD:100.00,/localfs/macro0.g>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|SD:100.00,/localfs/macro0.g>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|SD:100.00,/localfs/macro0.g>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|SD:100.00,/localfs/macro0.g>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|WCO:3.000,0.000,-2.500|SD:100.00,/localfs/macro0.g>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|Ov:100,100,100|SD:100.00,/localfs/macro0.g>
<Idle|MPos:0.000,0.000,0.000|FS:0,0|SD:100.00,/localfs/macro0.g>

macro0.g内容如下：
