复位引脚是通过 NC（常闭）开关接地还是通过设置反转 |
.png "最新的 grblhal 版本越来越奇怪了？错误 18 #132"){kind=avatar}
|
出于兴趣，你在什么上运行 H7 代码？ 此处仅在 WeAct MiniSTM32H7xx 和 Nucleo H743ZI 上进行了基准测试。 我仍然需要为 WeAct 板设计一个初始地图。我一直在不同分支机构致力于 SDMMC 和以太网支持，我将尝试更新所有这些并推送到我的 github 存储库。 @terjeio– 不知道你是否看到我在 F7 回购中的帖子？我有一块备用的 Nucleo H7 板，如果有用的话，我可以寄给你吗？ |
.png "最新的 grblhal 版本越来越奇怪了？错误 18 #132"){kind=avatar}

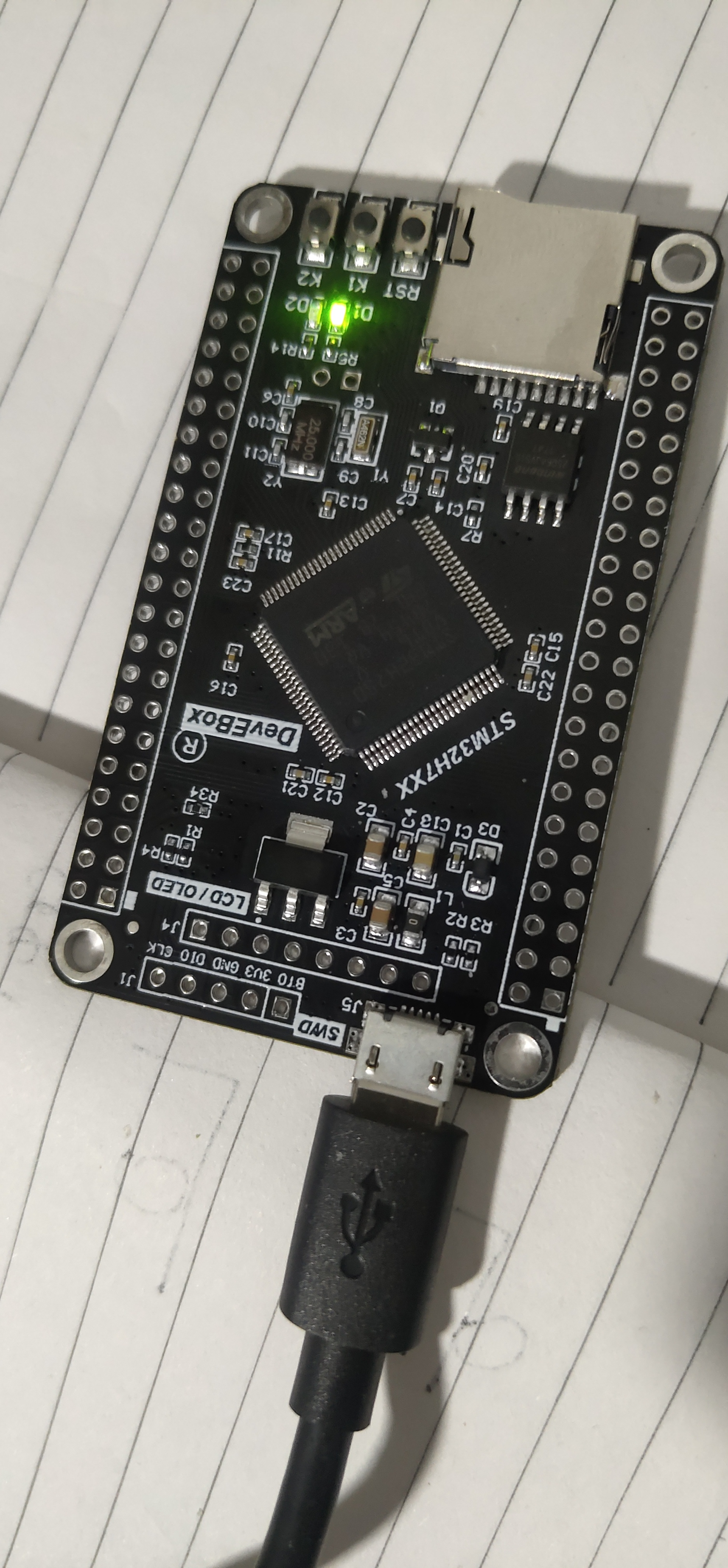

基于h750VBT6的最小系统板，在国内，买板子很方便， |
也试过把H743电路板邮寄到terjeio，但是寄国际包裹太麻烦了 |
哦，谢谢，设置 $14=1 就恢复正常了 |
我有F4和H7，跟以往不同，具体表现为电源处于报警状态，无法通过$x解锁，发送$x会报错18，发送$H会报错5 ，（没有代码更改
我无法在发送器软件中解锁。我需要多次按下重置和解锁才能使 grblhal 处于空闲状态。不知道这段时间grblhal发生了什么。
[G59.3:0.000,0.000,0.000]
[G28:0.000,0.000,0.000]
[G30:0.000,0.000,0.000]
[G92:0.000,0.000,0.000]
[TLO:0.000,0.000,0.000]
[PRB: 0.000,0.000,0.000:0]
[GC:G0 G54 G17 G21 G90 G94 G49 G98 G50 M5 M9 T0 F0 S0.]
[VER:1.1f.20220325:]
[OPT:VNMSL,35,1024,3,0]
[ NEWOPT:ENUMS,RT+,TC,SED]
[FIRMWARE:grblHAL]
[NVS STORAGE:*FLASH]
[DRIVER:STM32H743]
[DRIVER VERSION:220325]
[BOARD:grblHAL参考图]
[AUX IO:3,4,0, 0]
$0=10.0
$1=25
$2=0
$3=0
$4=7
$5=0
$6=0
$7=0
$10=511
$11=0.010
$12=0.002
$13=0
$14=0
$15=0
$16=0
$17=0
$18=0
$19=0
$20=0
$21=0
$22=0
$23=0
$24=25.0
$25=500.0
$26=250
$27=1.000
$28=0.100
$29=0.0
$30= 1000.000
$31=0.000
$32=0
$33=5000.0
$34=0.0
$35=0.0
$36=100.0
$37=0
$39=1
$40=0
$43=1
$44=4
$45=3
$46=0
$62=0
$63=2
$64=0
$65 =0
$100=250.000
$101=250.000
$102=250.000
$110=500.000
$111=500.000
$112=500.000
$120=10.000
$121=10.000
$122=10.000
$130=200.000
$131=200.000
$132=200.000
$341=0
$342=30.0
$343=25.0
$344=200.0
$345=100.0
$370=0 $848=0 $
372=0
$3 已 重置错误 Grbl1.1f [‘$’ or ‘$HELP’ for help] [MSG:’$H’|’$X’ to unlock] $X error:18 – Reset asserted [GC:G0 G54 G17 G21 G90 G94 G49 G98 G50 M5 M9 T0 F0 S0.] [G54:0.000,0.000,0.000] [G55:0.000,0.000,0.000] [G56:0.000,0.000,0.000] [G57:0.000,0.000,0.000] [G58:0.000,0.000, 0.000] [G59:0.000,0.000,0.000] [G59.1:0.000,0.000,0.000]
[G59.2:0.000,0.000,0.000]
[G59.3:0.000,0.000,0.000]
[G28:0.000,0.000,0.000]
[G30:0.000,0.000,0.000]
[G92:0.000,0.000,0.000]
[ TLO:0.000,0.000,0.000]
[PRB:0.000,0.000,0.000:0]
[GC:G0 G54 G17 G21 G90 G94 G49 G98 G50 M5 M9 T0 F0 S0.]
[VER:1.1f.20220325:]
[OPT: VNMSL,35,1024,3,0]
[NEWOPT:ENUMS,RT+,TC,SED]
[FIRMWARE:grblHAL]
[NVS STORAGE:*FLASH]
[DRIVER:STM32H743]
[DRIVER VERSION:220325]
[BOARD:grblHAL 参考图]
[AUX IO:3,4,0,0]
$0=10.0
$1=25
$2=0
$3=0
$4=7
$5=0
$6=0
$7=0
$10=511
$11=0.010
$12=0.002
$13=0
$14=0
$15=0
$16=0
$17=0
$18=0
$19=0
$20=0
$21=0
$22=0
$23=0
$24=25.0
$25=500.0
$26=250
$27=1.000
$28= 0.100
$29=0.0
$30=1000.000
$31=0.000
$32=0
$33=5000.0
$34=0.0
$35=0.0
$36=100.0
$37=0
$39=1
$40=0
$43=1
$44=4
$45=3
$46=0
$62=0
$63 =2
$64=0
$65=0
$100=250.000
$101=250.000
$102=250.000
$110=500.000
$ 111 = 500.000
$ 112 = 500.000
$ 120 = 10.000
$ 121 = 10.000
$ 122 = 10.000
$ 130 = 200.000
$ 131 = 200.000 $ 132 = 200.000
$ 132 = 200.000
$ 341 = 0 $ 342 =
342 = 30.0 $ 343 =
25.0 :G0 G54 G17 G21 G90 G94 G49 G98 G50 M5 M9 T0 F0 S0.] [G54:0.000,0.000,0.000] [G55:0.000,0.000,0.000] [G56:0.000,0.000,0.000] [G57:0.000,0.000 ,0.000] [G58:0.000,0.000,0.000] [G59: 0.000,0.000,0.000] [G59.1:0.000,0.000,0.000] [G59.2:0.000,0.000,0.000] [G59.3:0.000, 0.000,0.000] [G28:0.000,0.000,0.000]
[G30:0.000,0.000,0.000]
[G92:0.000,0.000,0.000]
[TLO:0.000,0.000,0.000]
[PRB:0.000,0.000,0.000:0]
[GC:G0 G54 G17 G21 G90 G94 G49 G98 G50 M5 M9 T0 F0 S0.]

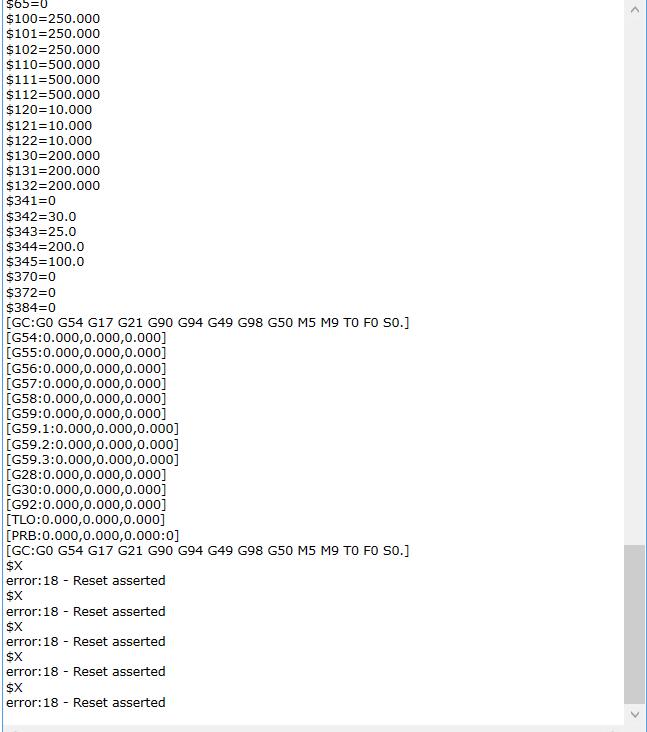

$X
错误：18 – 重置断言
$X
错误：18 – 重置断言
$X
错误：18 – 重置断言
$X
错误：18 – 重置断言
$X
错误：18 – 重置断言
